Speed Control - Woodward


Speed Control

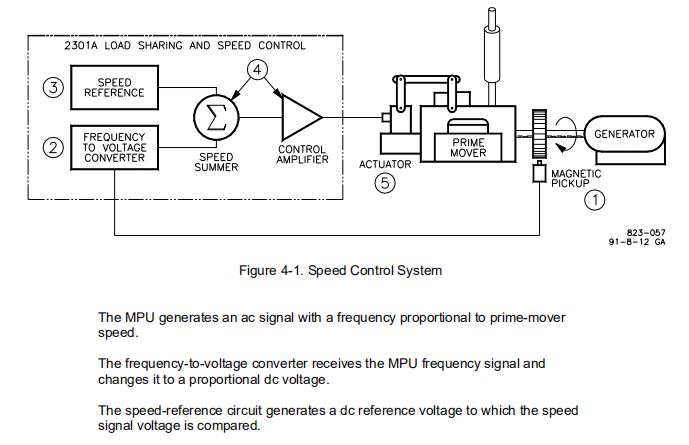

The system, consists of:


 A magnetic pickup (MPU), to sense the speed of the prime mover.


 A frequency to voltage converter, to convert MPU frequency to a voltage for

use in the 2301A internal circuits.


 A speed reference to which the prime mover speed is compared. (Idle and
Rated speed references are provided by the 2301A Speed Control. The
speed reference being used is selected by the operator with an external

switch.)


 A speed summer/amplifier with an output proportional to the amount of fuel

or steam required to maintain the reference speed at any given load.


ईंधन या भाप तंत्र (इंजेक्टर रैक या भाप) की स्थिति के लिए एक एक्चुएटर
वाल्व) प्राइम मूवर का।
